Garrett Vortex Series

Retail: 699.99
Our Price: Starting at 449.99
Im Stock

click "drop down" to choose your Vortex Detector

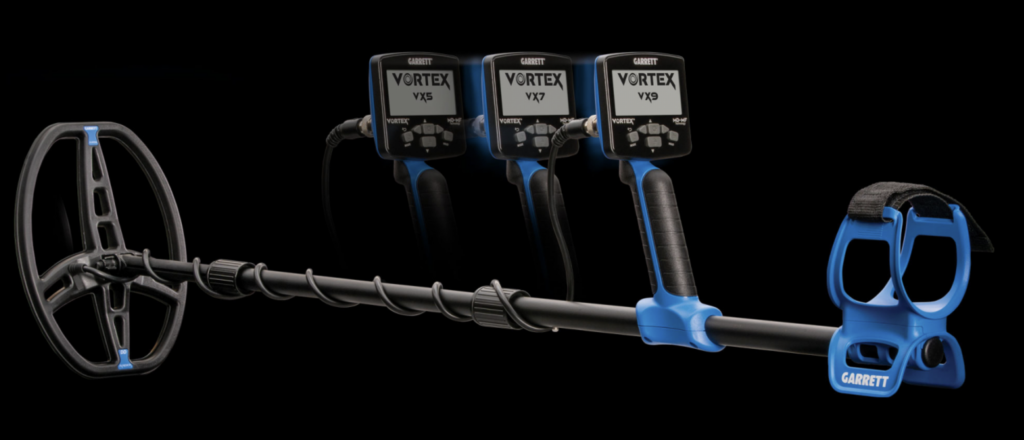

VORTEX SERIES COMPARISON
Vortex VX5 Vortex VX7 Vortex VX9
MD-MF
Target ID Scale		 One Target ID Scale
(0-99)		 2-tier Target ID Scales 3-tier Target ID Scales
Frequencies 13 khz, Multi-Freq. 5, 13 kHz, Multi-Freq.,
Multi Salt		 5, 9, 13, 18, 25 kHz,
Multi-Freq., Multi-Salt
Search Modes Zero, Standard, USA
Coins, Custom		 Zero, Standard, USA
Coins, Beach, Custom		 Zero, Standard,
USA Coins, Thin Coins,
Beach, Custom, Fast
Bottlecap Reject (MF function) Fixed Yes Yes
Iron Boundary (MF function) Fixed Fixed Yes
Notch Discrimination Yes Yes Yes
High-Resolution Iron Discrimination Yes Yes Yes
Sensitivity settings 8 8 8
Variable Recovery Speed Fixed Yes: 2 settings Yes: 3 settings
Z-Lynk Wireless Yes Yes Yes
Channel (EMI Reduction) Yes Yes Yes
Increased sensitivity/depth N/A Yes Yes
Auto Ground Balance Yes Yes Yes
Number of Tones 3 3, 5 3, 5
Volume Control Yes Yes Yes
Iron Audio™ Yes Yes Yes
Iron Volume Yes Yes Yes
Button Lock (Dive Mode) Yes Yes Yes
Pinpoint Yes Yes Yes
LCD Backlight Yes Yes Yes
Battery Condition Indicator Yes Yes Yes
Length (Adjustable) 24.75″ to 56.75″
(62.86 cm – 144.14 cm)		 24.75″ to 56.75″
(62.86 cm – 144.14 cm)		 24.75″ to 56.75″
(62.86 cm – 144.14 cm)
Total Weight (with 8.5″ x 11″ coil) 3 lbs (1.38 kgs) 3 lbs (1.38 kgs) 3 lbs (1.38 kgs)
Fully Waterproof to 16 ft (5m) 16 ft (5m) 16 ft (5m)
Warranty 3 Years,
Limited Parts/Labor		 3 Years,
Limited Parts/Labor		 3 Years,
Limited Parts/Labor
Updateable / Upgradeable Yes Yes Yes
MD-MF TECHNOLOGY

Garrett’s Multi-Dimensional Multi-Frequency (MD-MF) Technology provides deeper and more accurate target analysis and identification. This advanced technology detects and analyzes targets using simultaneous multiple frequencies, as well as multiple dimensions of conductivity and ferrous (iron) content.

The MD-MF Technology is integrated into all three Vortex models, with the most advanced analysis on the VX9’s multi-axis Target ID display. Ideal for metal detecting in various environments, this technology offers precise identification and improved detection depth.

VX5

The entry Vortex model includes an array of features that provide fast, fixed recovery speed on adjacent targets. Fully waterproof to 16 feet (5m), it’s perfect for both beginner and more advanced detectorists.

Single and Multi-Frequency options, Single-tier MD-MF Target ID scale, and three audio tones allow users to differentiate between metal objects in dry sand and underwater.

Vortex VX7 with Two-tiered MD-MF Target ID display

VX7

MORE POWER THAN VX5

An advanced waterproof metal detector with more frequency and mode options than VX5, including the powerful Multi-Frequency Salt mode for wet sand and saltwater beach detection.

Two-tiered MD-MF Target ID display has separate ferrous and non-ferrous target scales for more precise identification. Additional audio tones and adjustable Recovery Speed make this high-performance detector effective in diverse environments.

Vortex VX9 with full three-tiered MD-MF Target ID display

VX9

MORE POWER THAN VX7

The Professional’s model includes full three-tiered MD-MF Target ID display with two ferrous scales to identify unwanted iron trash. Includes Multi-Salt mode, additional frequency choices, and additional Recovery Speed controls for optimal performance.

Features FAST Mode for competition hunts and THIN COINS Mode for fine, lower conductive coins (hammered silver and thin gold coins).
